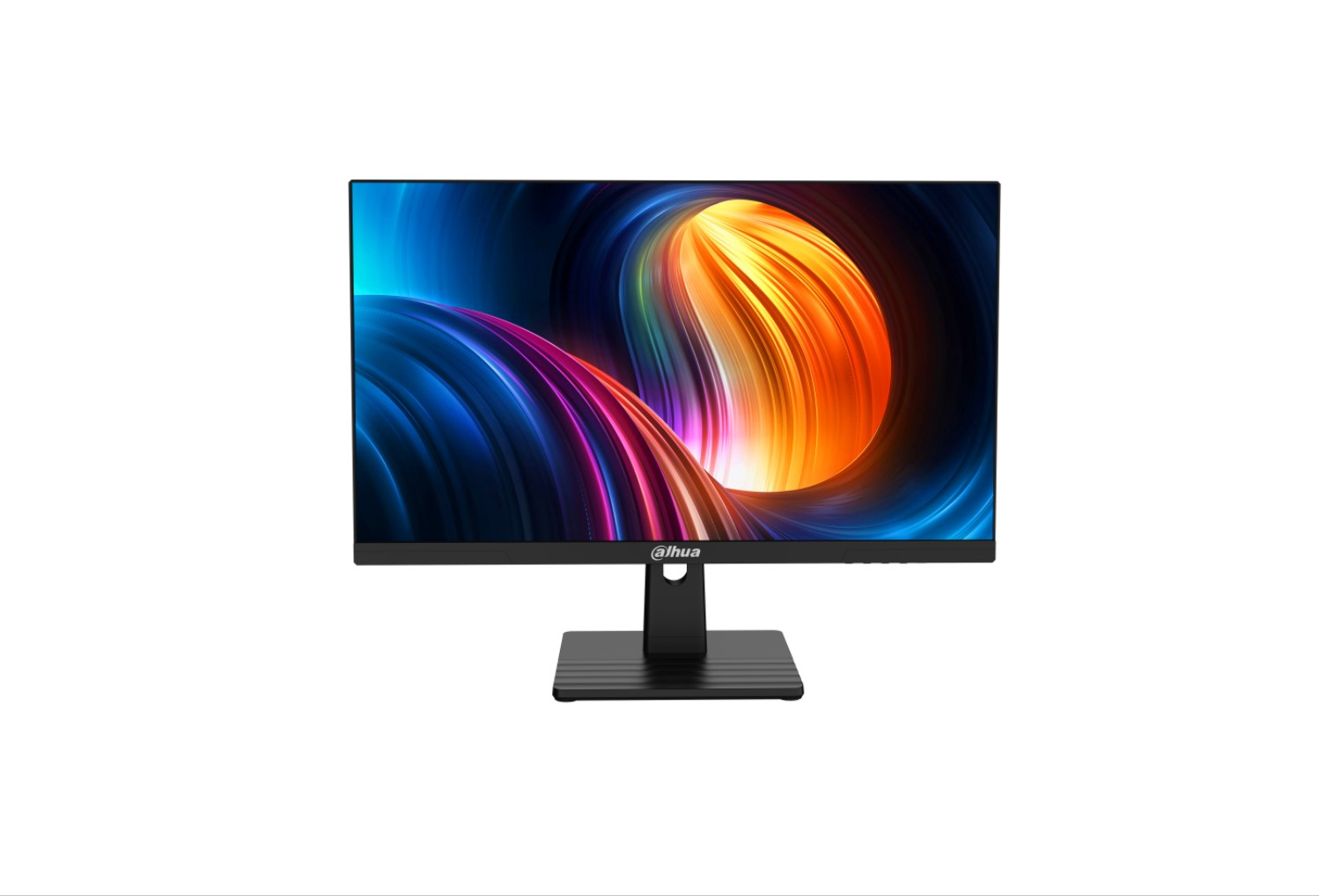

Monitor Dahua 24.5" DHI-LM25-B221B

Audio

Built-in speaker(s)

No

Caracteristici generale

Touchscreen

No

Plug and Play

Yes

Display

Display number of colours

16.7 million colours

Pixel density

89.91 ppi

Pixel Pitch

0.2832 x 0.2802 mm

Colour gamut standard

NTSC

Touchscreen

No

Display resolution

1920 x 1080 pixels

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display diagonal

62.2 cm (24.5)

Display diagonal (metric)

62 cm

HD type

Full HD

Contrast ratio (typical)

1500:1

Screen shape

Flat

Response time (MPRT)

1 ms

Display brightness (typical)

300 cd/m²

Haze rate

25%

Surface hardness

3H

Viewable size, horizontal

47.6 cm

Viewable size, vertical

26.8 cm

Native aspect ratio

16:9

LED backlight

Yes

Panel type

IPS

Maximum refresh rate

144 Hz

Display technology

LED

NTSC coverage (typical)

85%

Backlight type

Edge LED

Features

Panel mounting interface

100 x 100 mm

VESA mounting

Yes

Tilt adjustment

Yes

Tilt angle range

-5 - 20°

Product colour

Black

Plug and Play

Yes

Interfata

HDMI

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 90%

Packaging content

Cables included

HDMI

Stand included

Yes

Power adapter included

Yes

Manual

Yes

Quick start guide

Yes

PERFORMANCE

Low Blue Light technology

Yes

Power

Energy efficiency scale

A to G

Energy consumption (SDR) per 1000 hours

15 kWh

Power consumption (off)

0.3 W

Energy efficiency class (HDR)

Not available

Power supply type

External

Energy efficiency class (SDR)

D

AC adapter output voltage

12 V

Power consumption (max)

23.8 W

Current rating

2.5 A

Power consumption (typical)

19 W

Power consumption (standby)

0.5 W

Unknown Group

Touchscreen

No

Quick start guide

Yes

Built-in speaker(s)

No

Product colour

Black

Width (without stand)

557.7 mm

Manual

Yes

HD type

Full HD

Display diagonal (metric)

62 cm

Display diagonal

62.2 cm (24.5)

Cables included

HDMI

Viewing angle, vertical

178°

Display resolution

1920 x 1080 pixels

Viewing angle, horizontal

178°

Built-in camera

No

Depth (without stand)

58.1 mm

Tilt adjustment

Yes

Energy efficiency scale

A to G

DisplayPorts quantity

1

Power consumption (off)

0.3 W

Colour gamut standard

NTSC

Frameless design

Yes

Built-in USB hub

No

Height (without stand)

330.6 mm

Pixel density

89.91 ppi

Pixel Pitch

0.2832 x 0.2802 mm

VESA mounting

Yes

Display number of colours

16.7 million colours

Panel mounting interface

100 x 100 mm

HDMI

Yes

Plug and Play

Yes

AC adapter output voltage

12 V

Native aspect ratio

16:9

Panel type

IPS

LED backlight

Yes

Backlight type

Edge LED

Power adapter included

Yes

Audio output

Yes

HDMI ports quantity

1

Maximum refresh rate

144 Hz

Low Blue Light technology

Yes

Display technology

LED

Energy consumption (SDR) per 1000 hours

15 kWh

Stand included

Yes

Display brightness (typical)

300 cd/m²

Feet colour

Black

Screen shape

Flat

Contrast ratio (typical)

1500:1

Energy efficiency class (SDR)

D

Energy efficiency class (HDR)

Not available

Power supply type

External

Detachable stand

Yes

Weight (without stand)

2.9 kg

HDMI version

1.4/2.0

Package depth

134 mm

Wall mountable

Yes

Power consumption (standby)

0.5 W

Package type

Box

Package width

620 mm

Package height

431 mm

Height adjustment

No

Power consumption (typical)

19 W

Power consumption (max)

23.8 W

Package weight

3.9 kg

Camera

Built-in camera

No

DESIGN

Front bezel colour

Black

Detachable stand

Yes

Bezel width (side)

2.1 mm

Bezel width (top)

2.1 mm

Screen shape

Flat

Frameless design

Yes

Tilt angle range

-5 - 20°

Product colour

Black

Panel mounting interface

100 x 100 mm

Feet colour

Black

Bezel width (bottom)

1.96 cm

VESA mounting

Yes

Height adjustment

No

Ergonomics

Plug and Play

Yes

Tilt angle range

-5 - 20°

Tilt adjustment

Yes

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Height adjustment

No

LED indicators

Yes

Wall mountable

Yes

General

Pixel Pitch

0.2832 x 0.2802 mm

Multimedia

Built-in camera

No

Built-in speaker(s)

No

Other features

Audio output

Yes

Mean time between failures (MTBF)

30000 h

Compliance certificates

CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)

Package weight

3.9 kg

Packaging data

Package type

Box

Package width

620 mm

Package depth

134 mm

Package height

431 mm

Package weight

3.9 kg

Ports & interfaces

HDMI ports quantity

1

Audio output

Yes

HDMI

Yes

HDMI version

1.4/2.0

Built-in USB hub

No

DisplayPorts quantity

1

Ungrouped

HDMI

Yes

Touchscreen

No

Weight & dimensions

Weight (without stand)

2.9 kg

Bezel width (side)

2.1 mm

Bezel width (top)

2.1 mm

Height (without stand)

330.6 mm

Bezel width (bottom)

1.96 cm

Depth (without stand)

58.1 mm

Width (without stand)

557.7 mm
